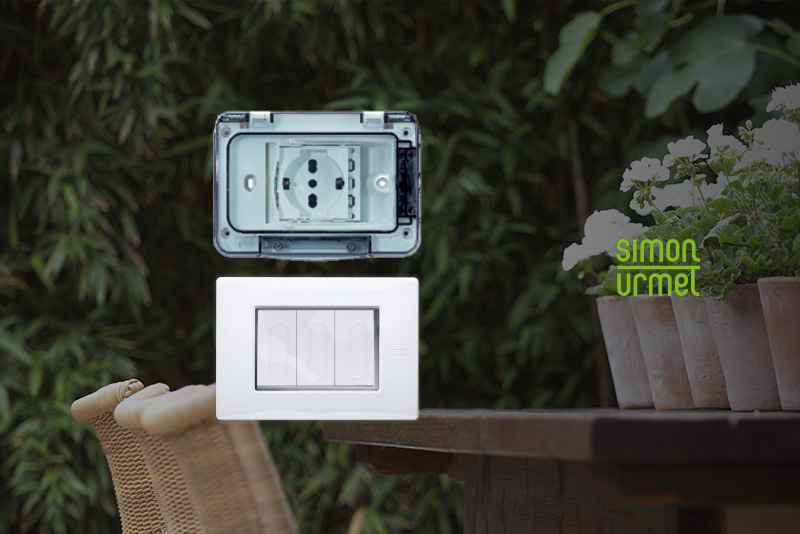

Switches and sockets for outdoor use. The NEA style even outside the home.

The Nea civil series can also be used outside: in the garage, in the cellar, on the terrace, in the garden. And in any place where special protection against weathering is required. Without compromising on aesthetic coordination with the rest of the electrical system. The guarantee of IP40 and IP55 certified waterproofing is added to the simplicity of assembly and versatility of installation. Thanks to the lids and watertight containers, the outdoor sockets of the electrical system are protected against any risk of moisture, dust, water jets and weathering. The IP55 caps are available in three colours: grey, anthracite and white.

IP40 and IP55 protection.

The IP40 and IP55 outdoor electrical boxes extend the scope of application of the NEA series equipment to environments where IP44 and IP55 degrees of protection are required (warehouses, basements, boiler rooms, mechanical workshops, etc.) according to the CEI 64-8 standard.

The IP40 degree of protection (impossibility of introducing a Ø 1mm wire) is obtained by installing equipment with an IP40 degree of protection, equipment with a closed front or by using the relevant module covers.

The IP55 degree of protection is defined by the EN 60529 standard and is guaranteed exclusively, provided that the installation is performed to a professional standard and using the accessories provided and with the lid closed.

IP55 and IP66 container

The new Simon Urmet IP55 container is the only case that guarantees the IP55 degree of protection in the three-module built-in box with plug in, closed door and without adapters, and the IP66 with the wall container. A refined and elegant design that allows the product to be installed both in residential settings, such as balconies and gardens, and in the tertiary and industrial sectors.
