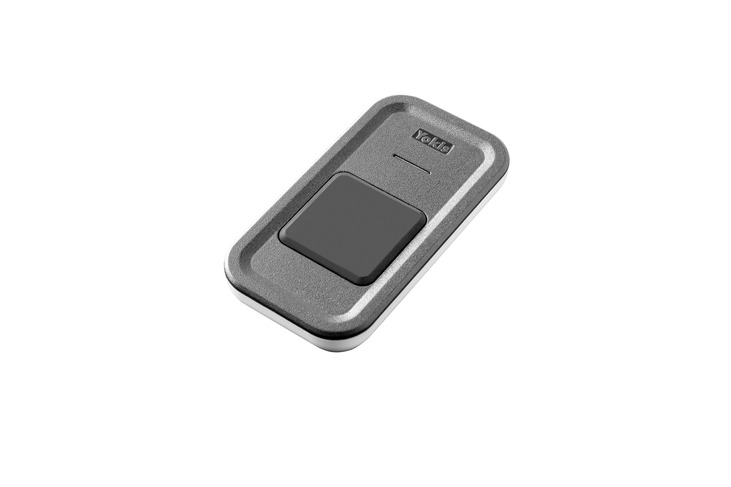

Design series remote control with 1 button, Radio Power system, table top, anthracite color

5454430

Design series remote control with 1 button, Radio Power system, table top, anthracite color

5454430

  • Product specification:
  • Power supply: battery; CR2032 lithium type
  • Useful life of the battery:> 7 years
  • Available channels: 1
  • Number of receivers / channel: 4 in direct mode; unlimited in Radio Bus mode
  • Range: 250m in free field of view and without obstacles. Reduction of the capacity in the presence of metal elements, crossing of walls or bulkheads
  • Frequency: 2.4GHz
  • Transmission: bidirectional with notification LED on the transmitter
  • Operating temperature: - 10 ° C to + 50 ° C
  • Relative humidity: maximum 80%
  • Dimensions (LxHxP): 71,5 x 36 x 11,6 mm

The TLC1TP table top remote control is a universal 1-channel radio transmitter capable of piloting all types of Yokis radio receivers (relays, dimmers, shutter modules and gate management modules) and can manage, in addition to direct commands, also commands centralization and activation of scenarios.
Thanks to the Yokis radio bus it is possible to transmit commands even to modules not directly reachable by the transmitter, by exploiting the repetition of the command by the actuator modules present on the radio bus, and to transmit commands to groups of different types of modules (relays, dimmers, actuators roller shutter, etc.).
It is simple to configure: either by the installer, via the device button or from the YokisPro App, or by the user, from the YnO App.
It is possible to duplicate the transmitters by copying the settings of the first on the following ones, without intervening on the receiver modules. The remote control is characterized by a design aesthetic and quality materials: keys with soft surface and body in bumper material. The transmitter is powered by a standard CR2032 battery (average battery life greater than 5 years).
Accessories:
SUPTLC1-2-4


Read more

Product Booklets

Installation

INSTALLATION MANUAL (remote) - it,en,fr,es,de,nl,da

DS1054-062B • pdf 1.24 MB • ID: 609501

Programming

RADIO QUICK INSTALLATION GUIDE - en

DS1054-102A • pdf 5.03 MB • ID: 490628

Declarations and certifications

Declaration of Conformity

CE_02478 • pdf 232.11 KB • ID: 588193

  • Packaging quantity single: 1
  • EAN single: 3760054544307
  • Base: 90 mm
  • Height: 80 mm
  • Depth: 25 mm

Accessories

Design
5454080

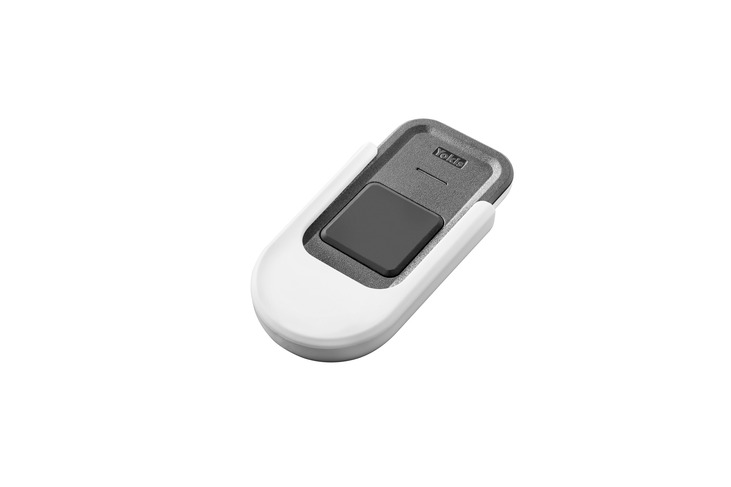

Design series remote control support, radio system, for TLC1TP, ...
