JUNCTION BOX POE 2CH

3000/150

JUNCTION BOX POE 2CH

3000/150

Product specifications:
- Network interfaces: LAN 2 x RJ45, 10/100 POE; WAN 1 x RJ45 10/100 POE
- IEEE Standard: IEEE 802.3
- MAC: 3
- Uplink port rate: 100Mbps
- Downlink port rate: 100Mbps
- Switching capacity: 1Gbps
- Packet forwarding rate: 0.744Mpps
- Internal cache: 768Kbits
- POE Standard: IEEE 802.3af
- Power supply: PIN 1236
- POE ports: 3
- Maximum power deliverable by POE ports: 25W
- Maximum power at full load: 30W
- Maximum switch power consumption without load: 5W
- Enclosure: Plastic and fiberglass
- Installation methods: Wall and ceiling mounting
- Dimensions (L x W x H): 310 x 156 x 70 mm
- Operating temperature/humidity: Temperature: -30°C to +60°C Humidity: Less than 90% RH
- Storage temperature/humidity: Temperature: -40°C to +85°C Humidity: Less than 90% RH
- Power specifications: POE 30W
- Lightning protection: 4KV

Go to document

Consult the FAQ

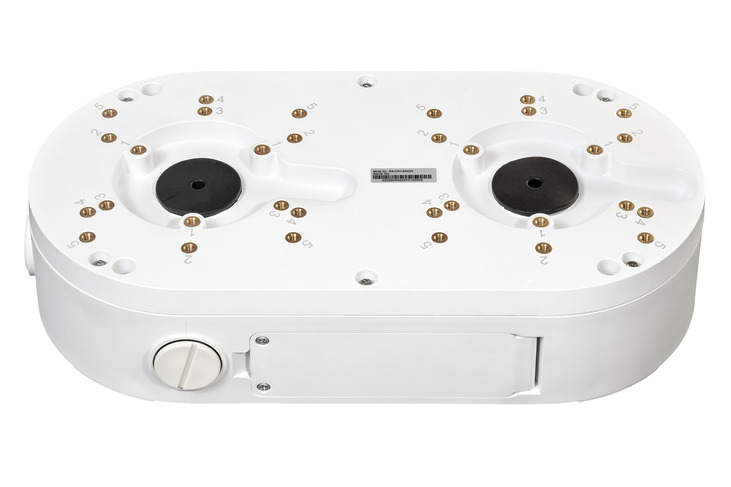

The dual camera junction box allows the simultaneous installation of two cameras (Bullet and Turret). Inside the junction box is housed a 10/100 switch that enables installation using just one PoE data/power cable. Easy to install, it requires no specific configuration.
