Numeric keypad door opening module, Alpha, black

1168/46

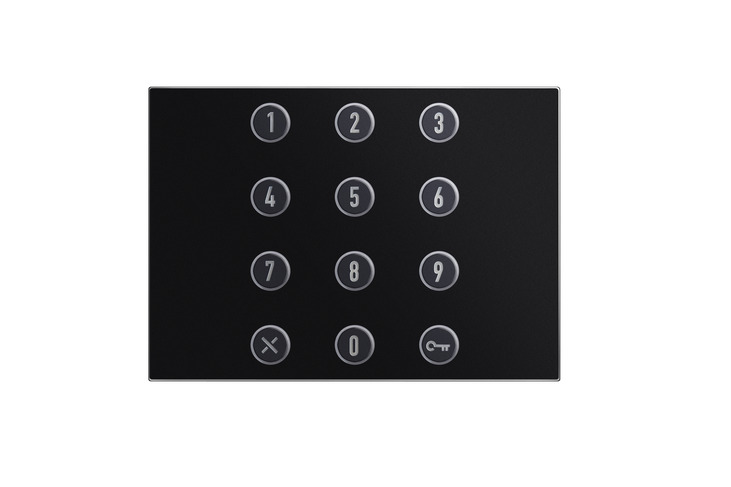

Numeric keypad door opening module, Alpha, black

1168/46

Product specification:
✦
Complete with screen-printed thermoplastic front panel.
✦
The buttons are equipped with LED for backlighting.
✦
Connection via flat cable supplied with wall frames
✦
Dimensions 124 x 90 mm

Go to document

Consult the FAQ

The Alpha numeric keypad module is used in combination with 1168/1 display module and audio or audio/video outdoor station to make up the digital call entry panel. Connection to the other modules with the flat cable supplied as standard.

Product Booklets

Languages for Product Manuals:

Installation

INSTALLATION MANUAL (keypad) - it,en,fr,es,de,nl

DS1168-024B • pdf 2.75 MB • ID: 617523

Declarations and certifications

Declaration of Conformity

CE_02318 • pdf 457.09 KB • ID: 672115

Datasheet

Data sheet cod. 1168/46

ID: 657801 • pdf 311.54 KB • 1 Feb 2024

Data sheet cod. 1168/46

ID: 657880 • pdf 1.01 MB • 1 Feb 2024

File BIM

BIM file in .ifc format - 1Row 3Mod.

ID: 577138 • zip 182.10 KB • 25 Mar 2021

BIM file in .ifc format - 1Row 3Mod.

ID: 576474 • zip 182.11 KB • 19 Mar 2021

BIM file in .ifc format - 1Row 3Mod.

ID: 576458 • zip 79.72 KB • 19 Mar 2021

BIM file in .rfa format (Revit) - 1R 3M

ID: 576465 • zip 775.42 KB • 19 Mar 2021

BIM file in .rfa format (Revit) - 1R 3M

ID: 577165 • zip 793.35 KB • 26 Mar 2021

BIM file in .rfa format (Revit) - 1R 3M

ID: 576479 • zip 182.11 KB • 19 Mar 2021

File 2D

Product drawing in dxf format without dimensions

ID: 505547 • dxf 141.21 KB • 6 Sep 2018

✦
Packaging quantity single: 1
✦
EAN single: 8021156064670
✦
Base: 117 mm
✦
Height: 160 mm
✦
Depth: 47 mm
