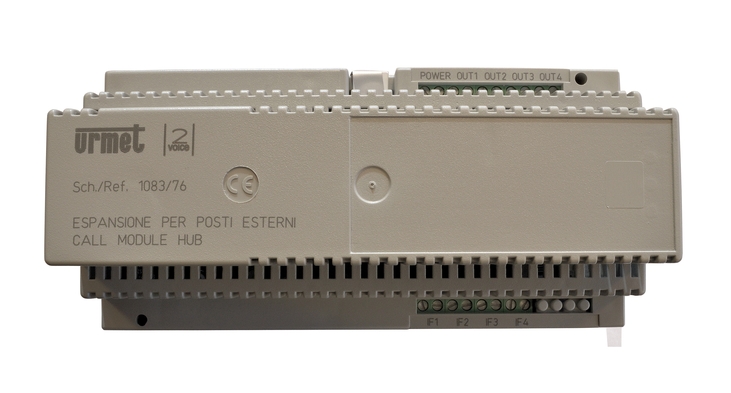

External panel hub, 2Voice system

1083/76

External panel hub, 2Voice system

1083/76

Product specification:
✦
It must be powered by a 1083/20A
✦
Consumption in stand-by mode: 40 mA
✦
Max. consumption: 100 mA
✦
Dimensions: 180 x 80 x 90 mm (10 DIN modules)

Go to document

Consult the FAQ

It allows 2Voice systems to be set up for use with 5 to 16 main call stations common to all users. To be used combined with 2 to 4 1083/75 modules. DIN rail mount (10 modules).

Product Booklets

Languages for Product Manuals:

Installation

INSTALLATION MANUAL - it,en,fr,es,de

DS1083-059B • pdf 4.98 MB • ID: 508534

Declarations and certifications

Declaration of Conformity

CE_02068 • pdf 982.17 KB • ID: 538593

File BIM

BIM file in .ifc format

ID: 575180 • zip 183.40 KB • 5 Mar 2021

BIM file in .rfa format (Revit)

ID: 576150 • zip 966.75 KB • 16 Mar 2021

File 2D

Product drawing in dxf format with dimensions in mm

ID: 207257 • dxf 448.76 KB • 7 May 2009

Product drawing in dxf format without dimensions

ID: 207258 • dxf 445.09 KB • 7 May 2009

✦
Packaging quantity single: 1
✦
EAN single: 8021156055227
✦
Base: 205 mm
✦
Height: 110 mm
✦
Depth: 125 mm
