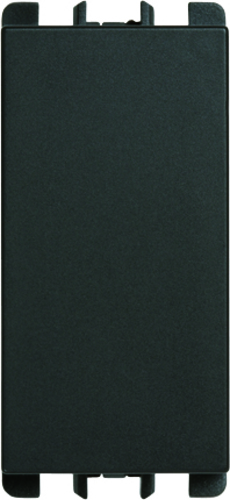

NC push button, 10A, screw terminals, 1 module, Anthracite

10109

NC push button, 10A, screw terminals, 1 module, Anthracite

NC push button, 10A, screw terminals, 1 module, Anthracite

NC push button, 10A, screw terminals, 1 module, Anthracite

10109

Product Specifications:
- Range: Nea
✦
Device: NC Push button
✦
Nominal voltage: 250V~
✦
Rated current: 10A
✦
Method of operation: Rocker
✦
Number of poles: 1
✦
Type of terminal connection: Screw terminal connection
✦
Backlit: Yes with dedicated led and key cover
✦
Material: Plastic
✦
Surface finishing: Matt
✦
Colour: Anthracite
✦
Modularity: 1 module

Consult the FAQ

NC push button, 10A, screw terminals, 1 module, Anthracite

Declarations and certifications

Declaration of Conformity

CE_60971 • pdf 724.49 KB • ID: 591363

Certificate

CCE10001-001 • pdf 539.58 KB • ID: 667765

✦
Packaging quantity single: 1
✦
EAN single: 8033335011962
✦
Base: 100 mm
✦
Height: 55 mm
✦
Depth: 24 mm

✦
Packaging quantity multiple: 5
✦
EAN multiple: 8033335007163
✦
Base: 132 mm
✦
Height: 92 mm
✦
Depth: 59 mm

✦
Packaging quantity transport: 200
✦
EAN transport: 8033335011962
✦
Base: 555 mm
✦
Height: 315 mm
✦
Depth: 195 mm
